Create an extension

This page is for developers. An extension is described by a JSON manifest: what it declares (permissions, columns, blocks, rules) is validated by Sweescape when you save it. Its interface is an HTML page hosted by Sweescape and displayed in an iframe isolated from the ticketing page.

Any account can create extensions and use them on its own events. Publishing on the marketplace is reserved to the Sweescape team.

Create the extension

1. Open your account menu, click Extensions, then Create extension.

2. Fill in the form:

   • Name: the name shown in your lists and in the page editor.
   • Package name: the unique id of the extension, in reverse-DNS notation and lower case, for example com.subsol.seatmap. It cannot be changed after creation and must be free across all of Sweescape.
   • Description: optional.

3. Click Create. The window moves to the Write the manifest step, with a prefilled example manifest.

Package name format

The form accepts any text, but the manifest requires an id equal to the package name and matching the pattern ^[a-z0-9]+(\.[a-z0-9-]+)+$: lower-case letters, digits and hyphens, at least one dot, no capitals or spaces. A package name that does not match this pattern makes the extension impossible to save: delete it and create it again.

Upload the UI files

Under the manifest editor, the Upload the UI file(s), then copy their URL into the manifest field sends your files to Sweescape.

• Accepted formats: html, js, mjs, css, json, svg, png, jpg, jpeg, gif, webp, ico, woff, woff2, ttf, map, txt.
• 5 MB maximum per file, 50 files maximum per upload.
• Each uploaded file appears with its public URL, a button to copy the URL and a cross to delete it.

Files are renamed

A file’s URL does not keep its original name: it ends with a unique id. A relative path such as ./app.js in your HTML will therefore not work. Ship a self-contained HTML page (inline CSS and JavaScript), or reference the other files by the full URL copied here.

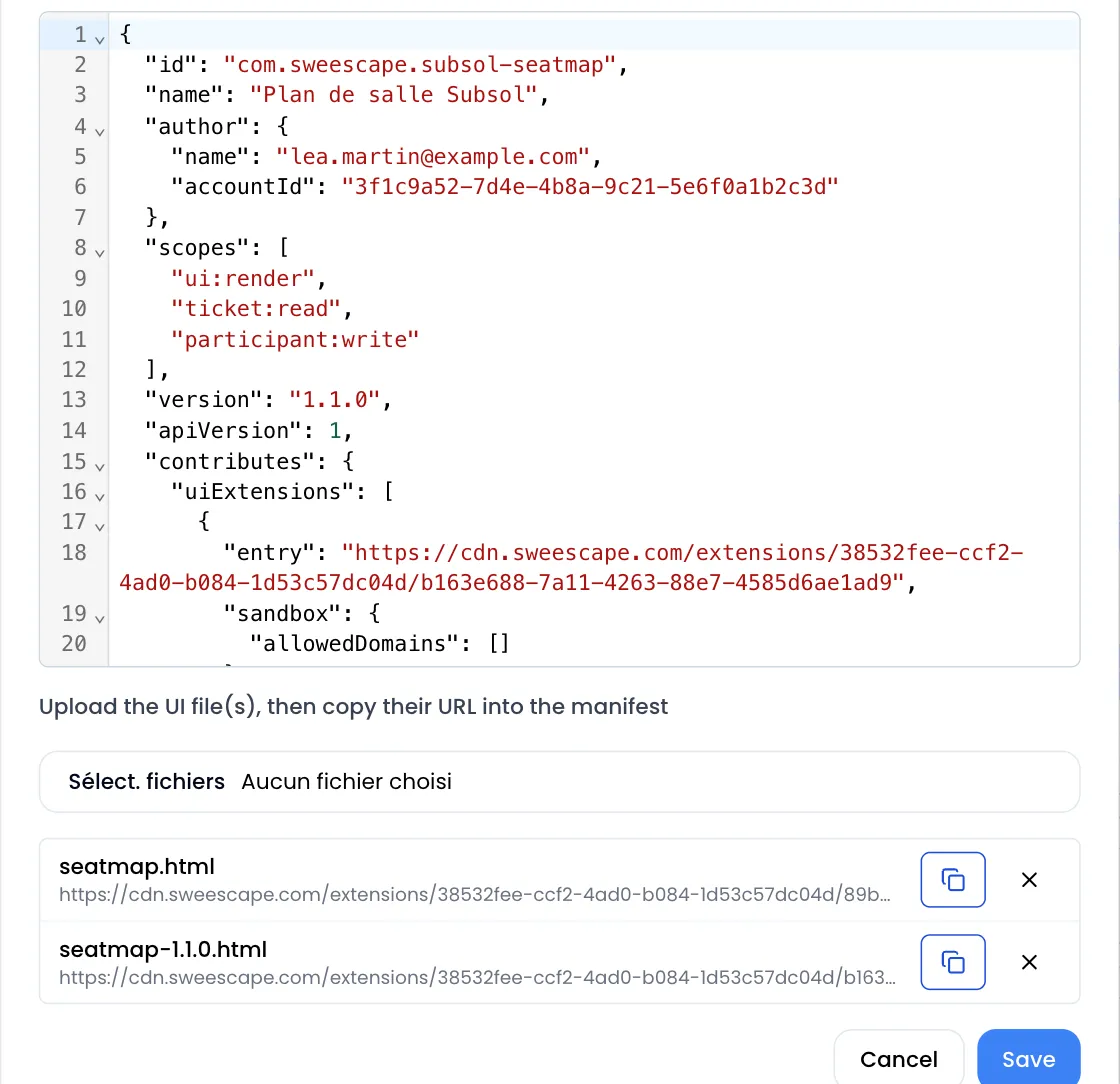

Write the manifest

A minimal manifest that displays a block on the ticketing page:

{
  "id": "com.subsol.seatmap",
  "apiVersion": 1,
  "version": "1.0.0",
  "name": "SUBSOL seating plan",
  "description": "Pick your seat before buying.",
  "scopes": ["ui:render", "ticket:read"],
  "contributes": {
    "uiExtensions": [
      {
        "surface": "page.block",
        "entry": "https://…/copied-file-url",
        "sandbox": { "allowedDomains": [] },
        "descriptor": {
          "name": "SeatMap",
          "category": "media",
          "description": "Seating plan",
          "fields": {
            "title": { "type": "text", "description": "Block title" },
            "ticket": { "type": "event_ticket", "description": "Ticket sold" }
          },
          "defaultProps": { "title": "Pick your seat", "ticket": "" }
        }
      }
    ]
  }
}

Key	Role
id	Same as the package name.
apiVersion	Version of the extension contract. Only 1 is accepted.
version	Your extension’s version in semver format (1.2.0).
name, description	Required.
scopes	The declared permissions.
contributes	What the extension adds: resourceFields, blocks, uiExtensions, rules.
configSchema	Optional: settings described at the extension level.

The author field is filled in automatically with your account name: no need to write it.

Permissions (scopes)

A permission is written resource:action. Resources are event, ticket, participant, order, payment, ticket_code, audience, campaign, automation, contact, invitation, invoice, analytics, ticket_page, badge. Actions are read, write, create, act, subscribe. Two special permissions complete the list: ui:render and net:fetch.

Each contribution requires its permission, otherwise saving fails:

Contribution	Required permission
A block (blocks) or an interface (uiExtensions)	ui:render
An interface with allowedDomains	net:fetch
A participant column (resourceFields)	participant:write
A rule triggered by order.created (for example)	order:subscribe
An adjust_price, reject or assign_ticket action	order:act
A webhook action	net:fetch
A set_field action on a resource	resource:write

Surfaces

An interface’s surface says where it shows. Today:

• checkout.confirmation shows on the confirmation page, after a successful payment;
• all other surfaces (page.block, checkout.step…) appear as a block, under the extension’s name, in the last category of the page editor, currently labelled OTHER.

Block settings

There are two kinds of blocks:

• blocks reuses an existing page editor block, named by baseComponent (for example Card), with your default values in descriptor.defaultProps. No third-party code runs; the settings are those of the original block.
• uiExtensions displays your own interface (the file given in entry).

For an interface, the fields of the descriptor become the block settings in the page editor. Each field’s description is used as its label. Recognized types:

Type	Setting displayed
text (and any unknown type)	Text field.
textarea	Text area.
number	Number field.
boolean	Yes / No choice.
color	Color picker.
select, radio	List of the declared options.
array	List of items whose sub-fields are described in arrayFields.
event_ticket	List of the event’s tickets. The value is the ticket id.

The values entered by the organizer are passed to your interface at startup (see below). defaultProps gives the default values.

Participant columns

resourceFields adds columns to the event’s attendees, which your interface fills in:

"resourceFields": [
  {
    "resource": "participant",
    "column": { "name": "seat", "type": "text", "required": true, "source": "ui", "unique": true }
  }
]

• name: lower case, digits and _, starting with a letter. firstname, lastname and email are reserved.
• type: text, number, date, boolean or select (with options).
• source: "ui": the value comes from your interface, never from the checkout form.
• unique: true: the value can only belong to one attendee of the event (a seat, a time slot). Sweescape refuses an order whose value is already taken or held by a cart in progress.

These columns show in the attendee list as long as the extension is active on the event.

Talk to the page

Your interface runs in an iframe with sandbox="allow-scripts" on an isolated origin. It receives no token and talks to the page only through postMessage.

Message sent by the iframe	Effect
{ type: "sweescape:ready" }	Asks to start. The page answers sweescape:init with config (the block settings) and context.
{ type: "sweescape:resize", height }	Adjusts the iframe height, in pixels.
{ type: "sweescape:set-field", field, value }	Saves a participant column value for the current purchase.
{ type: "sweescape:checkout", ticketId, fields }	Opens the purchase window on this ticket, quantity 1, with these column values.
{ type: "sweescape:checkout", items: [ { ticketId, quantity, units } ] }	Opens the purchase window on several tickets. units gives the column values of each ticket.
{ type: "sweescape:request", requestId, method, params }	Calls a page method, which answers { type: "sweescape:response", requestId, ok, data } or error.

Add closeOnBack: true to a sweescape:checkout message so that the purchase window’s back button closes it instead of showing the ticket selection.

Methods available with sweescape:request:

Method	Returns
context.get	The event (id, name, startDate, endDate, status, type, taxRate), the tickets on sale (id, title, price before tax, stock, minQuantity, maxQuantity) and the extension’s columns.
column.takenValues	With params: { column }: the list of values already taken in one of your unique columns.
participant.current	The column values already entered for the current purchase.
ticketCode.unlock	With params: { code }: applies an access code and returns the unlocked tickets and the remaining quota.
order.current	On the checkout.confirmation surface only: id, total, currency and ticketCount of the paid order.

Prices before tax

context.get returns prices before tax. To show the price the buyer pays, multiply by 1 + taxRate and round to the cent.

Rules

rules describes logic without code, evaluated by Sweescape. A rule has an id, a label, a trigger event on (order.created, order.confirmed, participant.created…), branches evaluated in order (the first one whose when condition is true applies) and an optional else.

Possible actions:

• reject: refuses the order with a message, before anything is written;
• adjust_price: proposes a price adjustment, which Sweescape recalculates and clamps between bounds.minCents and bounds.maxCents;
• set_field: writes a value in one of your extension’s columns;
• assign_ticket: chooses the ticket assigned to the attendee;
• webhook: sends a POST to an https URL, with only your columns and non-personal order fields (order_id, event_id, participant_id, ticket_id, total_amount, currency, status).

Rules are validated when the manifest is saved: a rule without the <resource>:subscribe permission of its event, or an action without its permission, is refused.

Save and fix errors

Click Save. The message “Extension saved” confirms the validation. Otherwise:

Message	Cause
“The manifest is not valid JSON”	JSON syntax error (extra comma, missing quote).
“The manifest is invalid”	A key is missing or has a refused value: malformed id, non-semver version, unknown surface or type, reserved column…
“The manifest uses a capability it doesn’t declare in “scopes””	Add the permission required by a contribution.
“The manifest “id” must match the package name”	The id differs from the package name entered at creation.
“This package name is already taken”	At creation: choose another package name.

Test the extension

1. Open one of your events, Extensions tab, and click Activate next to your extension. It is listed even if it is not published, as soon as its manifest is saved.

2. Open the page editor, drag the block from the last category of the list (OTHER) and fill in its settings.

3. Check the result with the editor’s Preview button, then on the published page.

To edit the extension, click the pencil icon next to it in My extensions: the Edit extension window reopens the manifest and the files. The new manifest applies as soon as it is saved, on every event where the extension is active.

Publish, unpublish, delete

• Status. A new extension shows the Private badge: only you can see it. Publishing on the marketplace (badge Published) is done by the Sweescape team; the Publish button does not appear for other accounts.
• Delete. The trash icon deletes the extension and its files, with no confirmation. If it is still active on events, the Cannot delete extension window lists them: deactivate it on each one first.

Create an extension from Claude or ChatGPT

The Sweescape connector for AI assistants can create an extension, upload its files and write its manifest, with the full contract schema. Activating it on an event remains an action you take in Sweescape. See Run Sweescape from Claude or ChatGPT.
